AlphaTool
Traditional manual pipetting has limitations on sample volume and is prone to relatively large errors. Laboratory automation can free up both hands, reduce errors, and enhance the efficiency and accuracy of pipetting tasks. MGI AlphaTool is a high-precision desktop-level automated pipetting robot that offers a range of liquid handling functions, including pipetting, dispensing, aliquoting, mixing, gradient dilution, and reagent preparation. With both single-channel and 8-channel pipettes, it is compatible with various samples and consumables, providing exceptional cost-effectiveness. It is the ideal choice for optimizing laboratory automation.
Request QuoteFeatures
Rapid pipetting: It can fill a 96-well plate in as fast as 22 seconds, equipped with both single-channel and 8-channel pipettes, meeting precise pipetting needs ranging from 1 to 1000 μL.
|
Flexible configuration: 12 plate positions, modular hardware, flexible and customizable tabletop.
|
User friendly: HEPA filtration system and UV lamp, avoiding cross-contamination and ensuring a safe working environment. The visual interface is simple and easy to understand. One-click to complete a variety of complex experimental processes via the customized script editing.
|
High compatibility: Compatible with many reagents and consumables on the market and compatible with standard SBS utensils. Standard API interface that supports being integrated as a unit of work.
|
Performance Parameter
| AlphaTool | ||
|---|---|---|
| Pipette property |
1 μL ±10% CV≤5.0% 1000 μL ±1% CV≤0.5% |
|
| Positioning accuracy of mechanical arm | ≤±0.1 mm | |

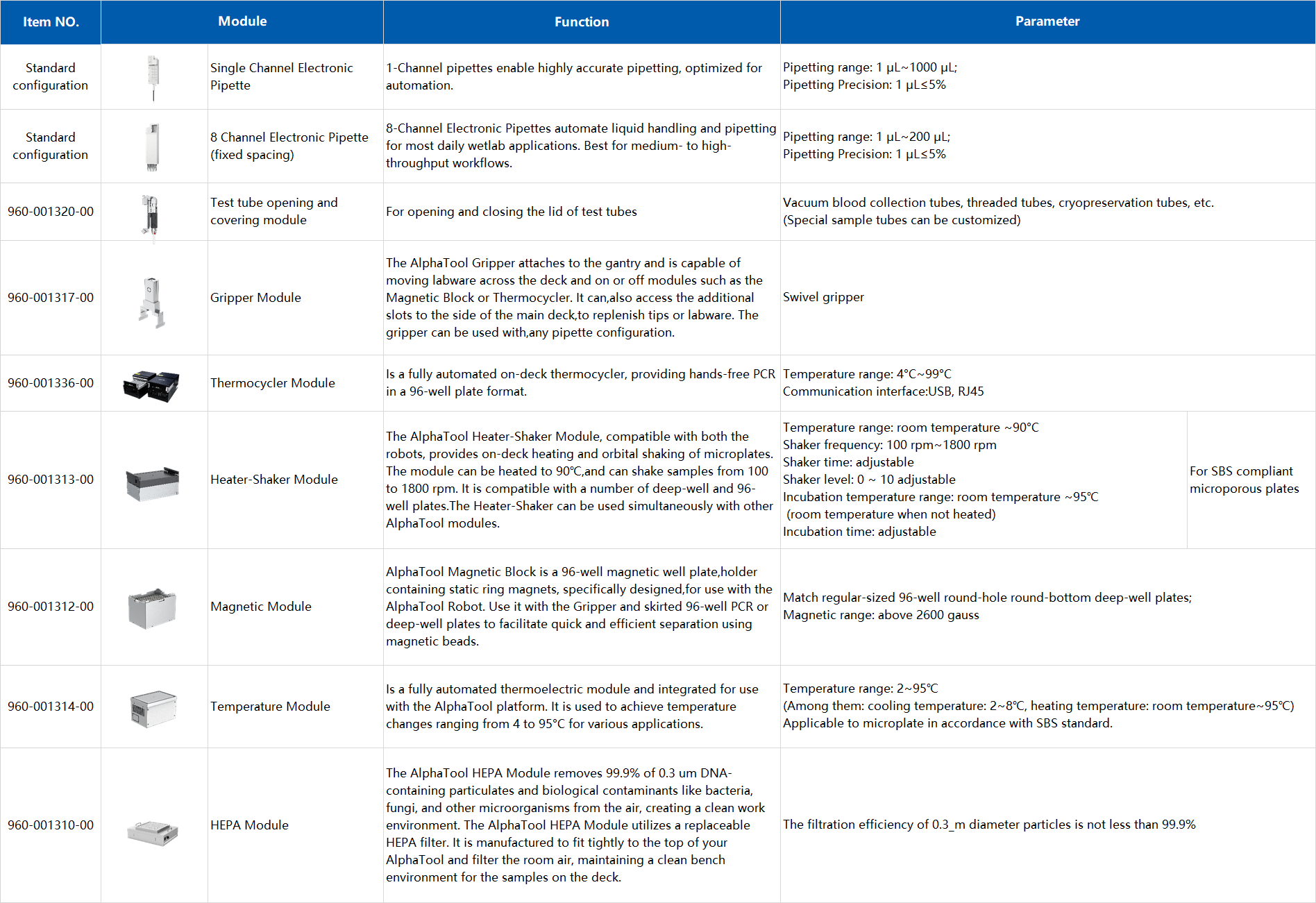

Function Module Usage and Matching Examples
List of Standard Machines
| Item NO. | Product Name | Product Description |
|
960-001238-00 |
AlphaTool Automated Pipette Robot |
Standard: 1 set of 1+ 8-channel pipette, 1 set of basic hepa, 1 waste needle box |
Adapter
| Item NO. | Product Name | Product Description |
|
962-000064-00 |
PCR Plate Adapter A (bottom with groove, metal) |
Use with full-skirt, half-skirt, or no skirt PCR plates |
|
962-000065-00 |
PCR Plate Adapter B (bottom with slot, plastic mold opening) |
Use with full-skirt, half-skirt, or no skirt PCR plates |
|
962-000073-00 |
12EP tube, 9 rows of 8- tubes |
Use with 1.5ml/2ml centrifuge tubes and 8-tubes |
|
962-000074-00 |
24EP tube, four rows of 8- tubes |
Use with 1.5ml/2ml centrifuge tubes 1.5ml/2ml and 8-tubes |
|
962-000068-00 |
24-well reagent bottle base (with reagent tank) |
Use with 1.5ml/2ml centrifuge tubes and 50m1/100ml reagent tanks |
|
962-000069-00 |
Reagent bottle base |
Use with 1.5ml/2ml centrifuge tubes and 25ml reagent tanks |
|
962-000070-00 |
Centrifugal tube seat |
Use with 1.5ml centrifuge tubes |
|
962-000071-00 |
24 well cooling adapter block |
Use with 2ml cryopreservation tubes |
|
962-000072-00 |
5ml EP tube rack |
Use with 5ml centrifuge tubes |
Consumable List
| Item NO. | Product Name | Product Description |
|
1000004644 |
1.3ml U-shaped bottom deep hole plate | 2 pieces/bag |
|
1000008088 |
2.2 mL 96-well V Bottom deep well plate | 6 plates/pack, 10 pack/ case |
|
091-000165-00 |
Full skirt PCR plate | 10 pieces/pack |
|
962-000076-00 |
50uL black tips with filter element | 96 pieces/box, 50 boxes/each |
|
962-000077-00 |
50uL clear, tips with filter element | 96 pieces/box, 50 boxes/each |
|
962-000078-00 |
200uL Black tips with filter element | 96 pieces/box, 50 boxes/each |
|
962-000079-00 |
200uL Transparent, tips with filter element | 96 pieces/box, 50 boxes/each |
|
962-000080-00 |
1000uL Black tips with filter element | 96 pieces/box, 50 boxes/each |
|
962-000081-00 |
1000uL Transparent, tips with filter element | 96 pieces/box, 50 boxes/each |
|
091-000487-00 |
100ml reagent tank (sterilized) | 1 piece/pack |
|
091-000488-00 |
50ml reagent tank (sterilized) | 1 piece/pack |
System Parameter
- Power & Dimensions & Weight
Overall dimensions (L * W * H): 620*600*700 mm
Weight: 36 Kg
Power: 200 VA
Rated voltage: AC 110 V-220 V
Voltage frequency: 50/60Hz
Safety tube (A): F10AL 250 V
